M12 v3 DSP Digital Audio Matrix

• M12 v3 is a digital matrix provided with 12 inputs, 8 outputs, 8 antilarsen and DSP with ability to integrate into any new or existing sound system.
• M12 v3 has 12 input equalizers and 8 output equalizers, automatic opening system for microphones, 8 antilarsen with different algorythm (one for each
output), gate and delay.
• M12 v3 is the evolution of M6 meant for those who have high demands in audio and want to get maximum performance in speech intelligibility and sound pressure. When it is required to handle multiple signals and send them to multiple outputs processing delays and equalizers, M12 is an indispensable tool.
• M12 v3 is a tool that allows you to get a good speech intelligibility in any environment where it is installed, increasing the efficiency of the audio system and increasing the SPL.
• M12 v3 is configured at installation time using a PC with proprietary software.

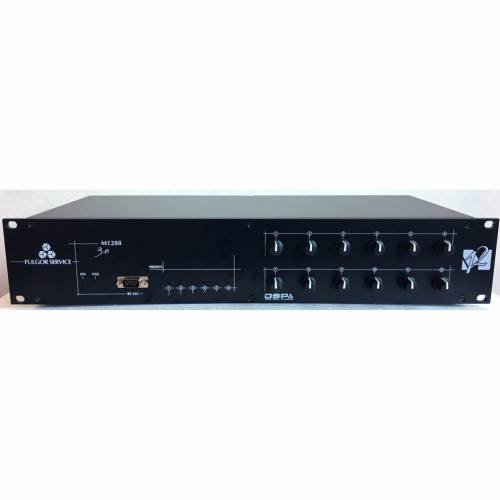

• M12 v3 is supplied in 2U standard rack and provided with a recall presets panel.
• M12 v3 is easy to manage for the final customer.

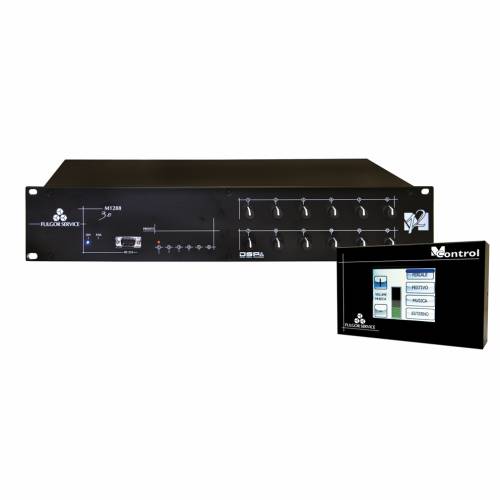

SUPPLIED:
RP6 PANEL - PRESET RECALL WITH 6 ITEMS

OPTIONAL:

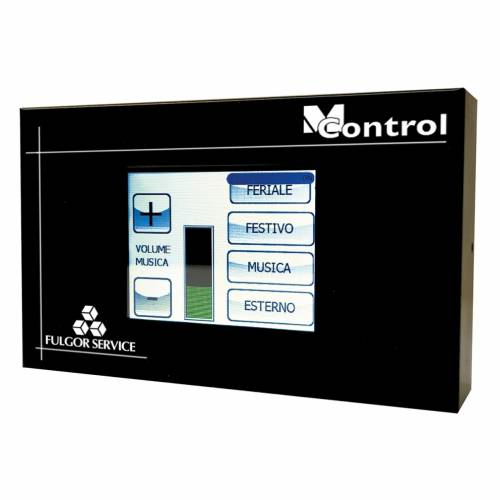

M-CONTROL INTERFACE TOUCH

TECHNICAL SPECIFICATIONS

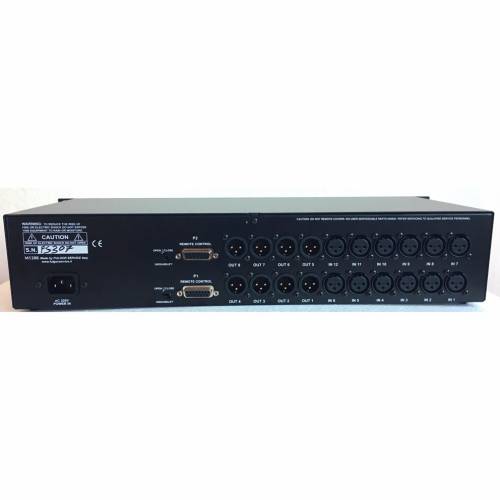

• 12 inputs and 8 outputs balanced XLR mic / line.
• 12X8 matrix by pass
• configurable and remotable potentiometers
• parametric equalizers on each input
• 8 antilarsen assignable outputs on dual technology
• 8 noise gate
• 8 delay
• 6 EQ on every output
• 32 configurable presets
• AutoMixer with advanced logic
• Dedicated software
• Compressor
• Phantom
• Gain up to 50 dB input
